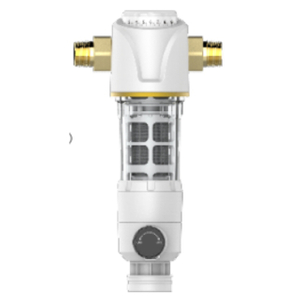

Water Pre-filter T3-S15 Pressure control
40micro spin down water sediment prefilter systems description:
The 40micro spin down water sediment prefilter systems is the first coarse filter equipment for the whole house water, which can filter the sediment, rust, eggs, red worms and other large particles in the tap water. The pre-filter is generally installed at the front end of the pipeline, so it is named by the word "pre-filter"; "Filtering" refers to the basic principle of such devices.
40micro spin down water sediment prefilter systems feature:
★ Visual indication of actual water pressure with external pressure gauge.
★ The filter bottle adopts original imported material, free of Biphenyl A, and is tested by NSF and SGS. After BRISK’s ,modified formula, it can withstand -30 ℃ freezing test 60kg pressure test, water hammer above 12kg 150,000 times. High quality and trustworthy.
★ Powerful back-spray washing, strongly spray the filter from the inside to the outside to effectively remove the filter impurities.
★ One single button controls on & off for back flushing mode. According to the precise mechanical principle, the water pressure and the spring automatically open the backwashing mode. The high pressure and high speed reversely flush impurities that is embedded in the filter net thoroughly.
★ Adopting precise filter membrane made of 316L food grade stainless steel. One piece molding, the filter incision is all inclusive welding process. Not easy to fall off. The flat weave net is more efficiency.
★ 360°universal installation mode meets the needs of more installation environments;
★ Patented long-term pressure control technology of gold cylinder, with subversive design, can automatically adjust the pressure and stabilize the safety value within 4kg to ensure the safety of back-end water;
40micro spin down water sediment prefilter systems parameter：
Model | Water Pre-filter T3-S15 Pressure control |
Flow Rate：4m³/h | Flow Rate：4m³/h |
Filtration Precision：40μm | Filtration Precision：40μm |
Applicable Water Pressure：0.15MPa-1MPa | Applicable Water Pressure：0.15MPa-1MPa |
Connector Dimension：3/4′′ NPT/G | Connector Dimension：3/4′′ NPT/G |
Ambient Temperature：5℃～40℃ | Ambient Temperature：5℃～40℃ |
Faq:
Q: Where does the impurity come from?
A:The water plant to our home has a long pipeline, some pipe age is relatively long will have rust into the water.
Q: What material is the pre-filter made of?
A:The pre-filter element is made of silver ion stainless steel filter, which inhibits bacterial regeneration while filtering water and avoids new contamination of the water store.
